Solenoid Valves and Limit Switches: Pneumatic Actuator Accessories Guide

Most pneumatic actuator searches stop at the actuator itself: output torque, ISO 5211 flange, spring return or double acting. But the actuator bolted to a valve is only half of a working package. The accessories mounted on its NAMUR pad decide how the valve is commanded, how its position is reported back, how clean the air is that drives it, and whether it can be operated by hand when the compressor is down. Get the accessory set wrong and a correctly sized actuator still lets you down in service — the valve opens on schedule but nobody notices it stuck half-closed, or a modulating loop hunts all day because the positioner was left out of the budget.

This guide covers the five accessories that appear on most quarter-turn packages — NAMUR solenoid valves, limit switch boxes, positioners, air preparation units and manual overrides — what each one actually does, when you genuinely need it, and how to spec it alongside your PNEUMACTUATOR actuator order. If you are still deciding which actuator family fits your valve, start with our complete pneumatic actuator buyer manual first, then come back to this one.

Keep reading for more!

The Snapshot

• A NAMUR solenoid valve is the electric on/off command for the actuator — it mounts directly on the standardized VDI/VDE 3845 pad on top of the actuator, with no tubing between valve and ports.
• A limit switch box reports valve position to the PLC or control room and usually carries a visual open/closed indicator dome; mechanical switches and inductive sensors are the two common options.
• A positioner turns the actuator into a proportional throttling device from a 4-20 mA signal — it is only needed for modulating service, not for simple open/close duty.
• An air preparation unit (filter, regulator, lubricator) protects the actuator from dirty or fluctuating supply air; filter grade and regulated pressure matter more than most spec sheets suggest.
• A manual override or handwheel lets you operate the valve without air for commissioning, maintenance or emergencies — but on fail-safe spring return packages it deserves a safety review before fitting.
• Buying accessories as part of the actuator package usually costs less and avoids interface mismatches than sourcing each piece separately later.

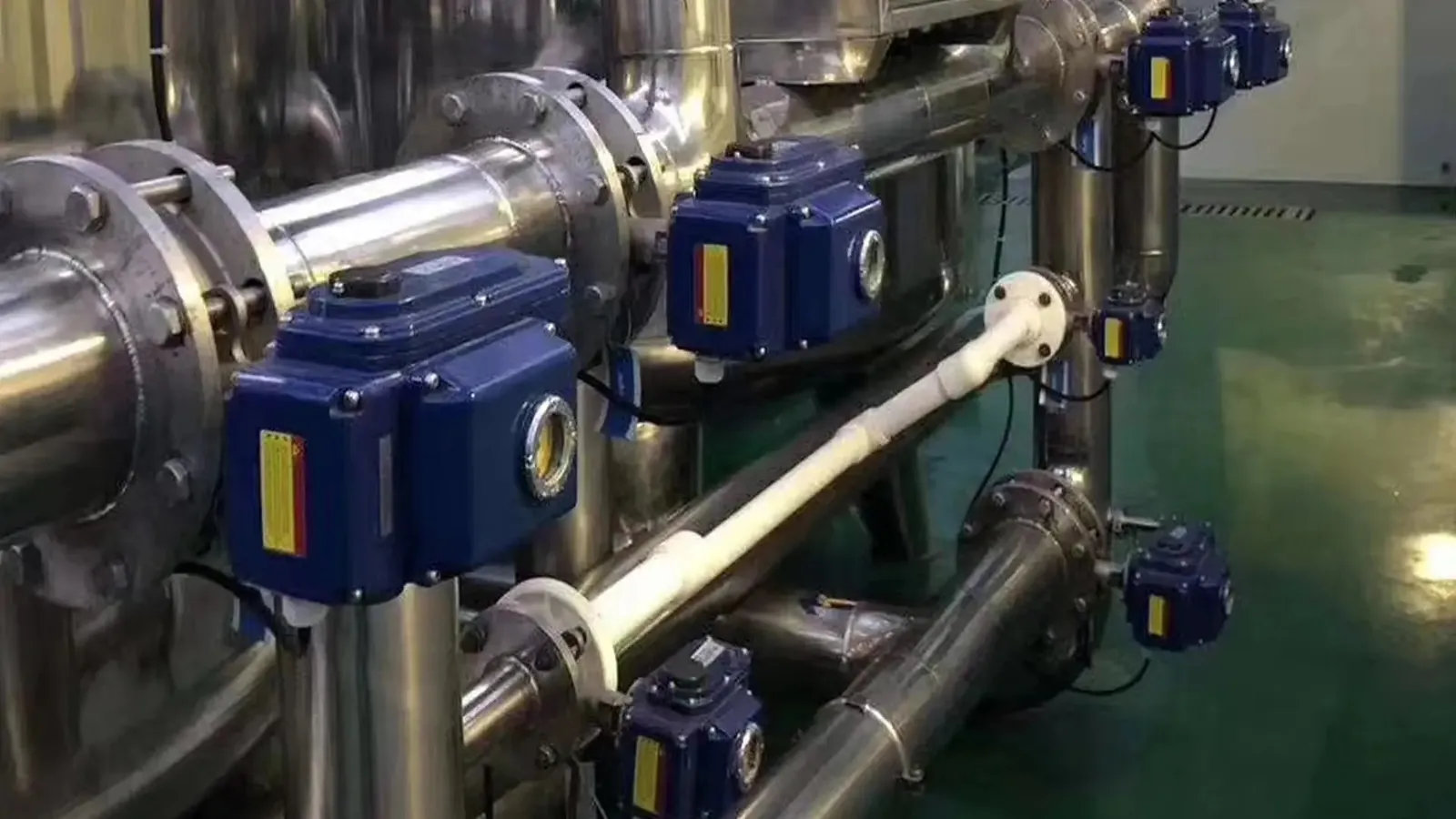

Why Accessories Turn an Actuator into a System

The actuator itself has one job: convert compressed air into rotary torque to drive a valve between open and closed. Everything bolted onto it exists to answer four questions your plant will ask every day — when should the valve move, how far, is it actually there, and what happens when the air stops? The answers come from the accessory set, not from the actuator.

Most quarter-turn accessories share one convenient fact: they mount on the same standardized interfaces. The valve side uses the ISO 5211 flange, and the accessory side uses the NAMUR pattern defined in VDI/VDE 3845 — a 30×80 mm mounting pad with a defined hole pattern and ¼-inch air ports on top of the actuator. We explain the mounting side in our ISO 5211 mounting guide; the practical effect here is that a NAMUR solenoid valve, limit switch box or positioner from one vendor bolts onto an actuator from another without adapters. That interchangeability is why the pad exists.

Accessory selection is driven by control philosophy, and it is worth deciding this before ordering: on/off remote control, proportional modulation, fail-safe position, hazardous-area duty, or some combination. Each answer points at a different accessory list, and most of the sections below start with that decision.

NAMUR Solenoid Valves: Electric On/Off Command

The solenoid valve is the electric-to-pneumatic switch of the package. A coil energizes, the spool shifts, and supply air is routed to whichever actuator port drives the valve open or closed. When the coil de-energizes, the spool returns and the actuator vents.

Which valve for which actuator

• 5/2-way (five ports, two positions) for double acting actuators — one solenoid shifts air to port A or port B, so the actuator pushes in both directions.
• 3/2-way (three ports, two positions) for spring return actuators — the air side strokes the actuator and the spring does the return, so only one pressurized port is needed.
• 5/3-way variants (center closed or center exhausted) where a double acting actuator must hold its position when de-energized — a common alternative to a spring return when fail-in-place is acceptable. The trade-off between spring fail-safe and hold-in-place is covered in our double acting vs spring return comparison.

What to spec

• Voltage: 24 VDC is the default for PLC-controlled plants; 110 VAC and 220 VAC are common where the wiring system is already mains-based. Coil burn-out from a wrong voltage is one of the most frequent field failures, so confirm this twice.
• Flow (Cv): a larger Cv moves more air per cycle and shortens stroke time. For most rack and pinion sizes a ¼-inch NAMUR valve is the starting point; larger scotch yoke actuators may need bigger porting or a pilot-operated valve.
• Manual override: a small button or slot on the valve body lets an operator shift the valve by hand during commissioning or when the control signal is unavailable — useful on nearly every installation.
• Certification: in hazardous areas you will need an explosion-proof (Ex d) or intrinsically safe version; see our ATEX pneumatic actuator guide for the zone logic.

Because the NAMUR valve bolts straight onto the pad with gasket-sealed ports, the classic failure point — loose tubing between a remote valve and the actuator — largely disappears. It is the cheapest accessory on the list and the one no remote-operated package can do without.

Limit Switch Boxes: Position Feedback

An actuator can be commanded perfectly and still fail to reach the position — seat wear, a jammed valve, low supply pressure. The limit switch box exists to tell you what the actuator is actually doing. It mounts on the same NAMUR pad, couples to the actuator shaft, and trips switches as the shaft rotates.

Mechanical switches vs inductive sensors

• Mechanical SPDT switches are simple and work with most control voltages; cam wheels inside the box are adjusted to trip at the open and closed positions of the stroke.
• Inductive proximity sensors (PNP or NPN, typically 8-30 VDC) have no moving contact parts and are the common choice where the box feeds a PLC input directly and switching is frequent.

Most boxes carry two switches (open + closed), and four-switch versions add intermediate position reporting — useful on multi-position or partial-stroke test setups. The indicator dome on top gives an operator on the plant floor an instant visual check without opening anything. For continuous rather than binary feedback, some boxes accept a potentiometer or a 4-20 mA transmitter, which is the economical middle ground between limit switches and a full positioner.

What to spec

• Switch type and rating: match contact rating to your control circuit and choose PNP/NPN to suit the PLC input card.
• Enclosure: IP67 housings are the norm for outdoor and washdown areas; Ex d versions exist for hazardous zones.
• Cam adjustability: cams should be settable across the actuator's rotation range (the ±5° travel-stop adjustment on AT-series actuators gives you room to fine-tune the trip point).
• Wiring: terminal blocks and cable gland entries vary — confirm the gland size matches your cable before installation.

Positioners: Throttling and Modulating Control

If the solenoid valve is the on/off switch, the positioner is the volume knob. It takes a control signal — most commonly 4-20 mA — compares it against the actuator's actual shaft position via a feedback arm, and adjusts pilot air until the two match. The result is an actuator that stops anywhere along its stroke, holding the valve at a precise opening for flow, pressure or temperature control.

Do you need one?

No positioner is needed for plain open/close service — a solenoid and limit switch do that job at lower cost. You need a positioner when the valve is asked to throttle: process control loops, flow or pressure regulation, blending, temperature trimming. Double acting actuators with positioner-ready NAMUR mounting (like our DA-series positioner-ready actuators) are the usual basis for quarter-turn modulating service, and linear valve control uses the same principle on linear actuators.

Smart vs pneumatic

• Smart positioners add auto-calibration, tighter deadband and diagnostics over HART or fieldbus; they also surface problems like rising friction before they stop a loop. This is the typical choice for DCS-connected plants.
• Pneumatic positioners need no electricity at all and remain a practical option in hazardous or power-scarce locations, at the cost of fewer features.

One caution: a positioner amplifies whatever air quality it is given. Dirty or wet supply air blocks pilot nozzles, which is why positioner-fed packages should sit behind a properly sized air preparation unit — the next section.

Air Preparation Units (FRL): Clean, Regulated Air

Compressed air from a plant line is rarely fit to feed directly into a precision actuator. It carries water condensate, pipe scale and oil vapor, and its pressure swings with every other consumer on the network. The FRL — filter, regulator, lubricator — sits upstream and fixes all three.

The three elements

• Filter: removes water droplets and particulates; 5-micron filter elements are the common starting point, with auto-drain bowls for unattended service. ISO 8573-1 air quality classes give you a formal way to specify cleanliness, and positioner-fed packages generally want a tighter class than simple on/off actuators.
• Regulator: holds downstream pressure steady regardless of upstream fluctuation. AT-series actuators are rated for 2-8 bar supply, and most plants run regulators around 4-6 bar — set once, gauge-checked, locked.
• Lubricator: adds a controlled oil mist for actuators that specify lubricated air. Many modern actuators are pre-lubricated and run happily dry — in that case an oil-lubricated line can cause more trouble than it prevents. Check the actuator's own instruction before assuming lubrication is required; our maintenance guide covers the air quality side in more depth.

Sizing

Size the FRL by flow, not by actuator size alone: a ¼-inch unit covers most rack and pinion sizes, while large scotch yoke actuators and fast-cycling packages need bigger ports to avoid starving the actuator mid-stroke. If in doubt, give the supplier the actuator model, cycle rate and stroke time target and let them size the unit.

Manual Overrides and Handwheels

Sooner or later every plant needs to move a valve with no air behind it — during commissioning, before maintenance, or when the compressor is down. A manual override covers that gap. Two common styles exist:

• Gearbox handwheel mounted between the actuator and the valve. The worm gear is self-locking, so the valve holds whatever position the operator turns it to, with no air required to stay there. This is the standard choice for larger valves where hand torque alone is not enough.
• Declutchable direct override mounted on or beside the actuator, engaging hand operation when needed and disengaging when the air returns (or locking in position, depending on the design). It suits smaller quarter-turn packages where a gearbox would be overkill.

Specifying an override on a spring return actuator deserves an extra thought: a handwheel left engaged can hold the valve against the spring, which defeats the fail-safe function the actuator exists to provide. On safety-instrumented lines this is a real review point, not paperwork — confirm the override's behavior (declutch on air return vs lock) with your supplier before fitting one.

Other Accessories Worth Planning For

Beyond the big five, a handful of small items regularly appear on actuator packages. They are cheap, but they change performance:

• Speed control valves (one-way flow controls on the exhaust ports) throttle stroke time — the practical way to slow a valve down without changing the actuator.
• Quick exhaust valves vent the actuator faster for a snappier cycle where process timing demands it.
• Lock-up valves trap air in a double acting actuator when supply is lost, holding the valve in place — the fail-in-position alternative to a spring return (see the spring return working principle to compare the two philosophies).
• Tubing, fittings and silencers: PU or nylon tube sized to the valve Cv, compression fittings, and exhaust silencers where noise is a concern.
• Mounting kits and couplings: ISO 5211 spacers, shafts and brackets that marry actuator to valve — covered properly in our ISO 5211 guide.
• Position transmitters (4-20 mA feedback without a full positioner) where the control room wants analog position but the valve stays on/off.

Choosing the Right Accessory Package

The table below maps the four common control requirements to the accessory set that typically satisfies them. It is a starting point — your process, hazardous-area classification and existing control system may move items around.

Two practical tips. First, ordering accessories together with the actuator — as PNEUMACTUATOR packages them — removes the interface guessing: the NAMUR pad, ports and bracket are matched at the factory, and everything arrives pre-assembled. Second, keep a spare solenoid coil and a set of limit switch cams in stores; they are the two components most likely to need replacement in the first years of service.

Questions Buyers Ask

1. Do I need a positioner if my valve is only open/closed?

Typically no. A solenoid valve plus limit switch box handles on/off duty at lower cost. Add a positioner only when the valve must throttle or hold intermediate positions.

2. Will any NAMUR solenoid fit my actuator?

Any valve built to the VDI/VDE 3845 pad pattern bolts on, but check port size, flow (Cv) and voltage. A valve that is too small slows the stroke; the wrong voltage kills the coil.

3. 24 VDC or 220 VAC coils?

Match the plant's control system — 24 VDC is standard for PLC outputs; AC coils are common where the wiring is already mains. DC coils draw more current, so confirm the PLC card can drive them or use a relay.

4. Mechanical switches or inductive sensors in the limit switch box?

Both work. Mechanical SPDT switches suit mixed voltages and simple circuits; inductive sensors (PNP/NPN) have no contact wear and feed PLC inputs directly. Choose by what the control input expects.

5. Do I need a lubricator in the FRL?

Only if the actuator's documentation specifies lubricated air. Many modern actuators are pre-lubricated and run dry; adding oil to a dry actuator can attract dirt and gum seals over time. Follow the manufacturer's air quality guidance.

6. Can I add a handwheel to an existing actuator later?

Retrofit kits exist for many sizes, but the cleanest path is to spec the override at order time — the mount, coupling and (on spring return models) the fail-safe behavior are then engineered together rather than improvised on site.

The Bottom Line

An actuator is a torque source; the accessories around it are what make it a valve automation system. The five that matter on most packages are the NAMUR solenoid valve (the command), the limit switch box (the report), the positioner (the throttle), the FRL (the air quality) and the manual override (the backup). Each maps to a control requirement — on/off, feedback, modulation, reliability, maintainability — and each has a "you need it when" condition that is clearer than the marketing suggests. Work out your control philosophy before ordering, spec the accessories with the actuator, and let the NAMUR pad do what it was designed to do: let you mix and match without re-engineering. If you are sourcing a complete package, tell PNEUMACTUATOR the valve size, air pressure, control signal and fail-safe requirement — the actuator, valve mounting and accessory set get sized as one order instead of five separate hunts.
